Description of Statistical Computation

Author's title

Author*The author of this computation has been verified*
R Software Modulerwasp_bootstrapplot.wasp
Title produced by softwareBlocked Bootstrap Plot - Central Tendency
Date of computationMon, 03 Nov 2008 12:36:25 -0700
Cite this page as followsStatistical Computations at FreeStatistics.org, Office for Research Development and Education, URL https://freestatistics.org/blog/index.php?v=date/2008/Nov/03/t1225741020js05wc1m332rpjk.htm/, Retrieved Sun, 19 May 2024 10:11:45 +0000
Statistical Computations at FreeStatistics.org, Office for Research Development and Education, URL https://freestatistics.org/blog/index.php?pk=21077, Retrieved Sun, 19 May 2024 10:11:45 +0000
QR Codes:

Original text written by user:
IsPrivate?No (this computation is public)
User-defined keywords
Estimated Impact205

Tree of Dependent Computations

Family? (F = Feedback message, R = changed R code, M = changed R Module, P = changed Parameters, D = changed Data)
F     [Blocked Bootstrap Plot - Central Tendency] [workshop 3] [2007-10-26 12:36:24] [e9ffc5de6f8a7be62f22b142b5b6b1a8]
F    D    [Blocked Bootstrap Plot - Central Tendency] [Hypothesis testin...] [2008-11-03 19:36:25] [4e8974eee929007194de34cbeefcb780] [Current]
-           [Blocked Bootstrap Plot - Central Tendency] [] [2008-11-03 19:40:11] [29747f79f5beb5b2516e1271770ecb47]
Feedback Forum
2008-11-11 12:55:29 [Jeroen Michel] [reply]
Je gebruikt wel een correcte techniek alleen is het hier zo dat je conclusie te vaag is en weinig zegt.

Onderstaande feedback geeft een concretere werkwijze en doel weer!

Bootstrapping: gem. Dataset ïƒ 500 x opnieuw
Telkens 1 eruit nemen en een andere terugleggen ( er bestaat dan natuurlijk de kans dat je hetzelfde terug neemt)
Simulation of mean: Alle punten zijn alle berekende gemiddelden, door elkaar.

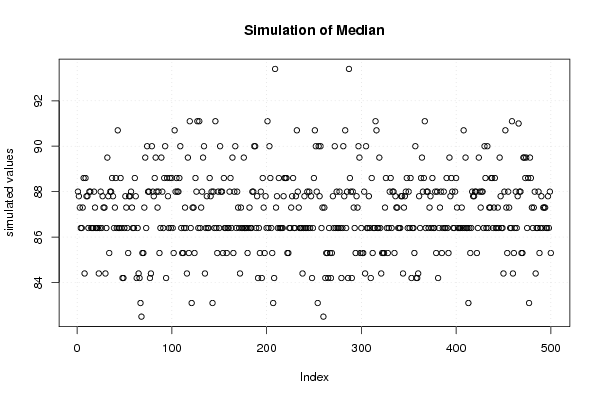

Simulation of median: meer een patroon
Imulation of midrange: duidelijk patroon
Hoe minder variatie, hoe nauwkeuriger
Midrange als gemiddelde nemen omdat daar de variatie het kleinst is
Maar: daar zijn wel heel veel outliers!!! Je hebt een gemiddelde waarvan de getrouwheidsinterval zeer klein is, maar als je er buiten zit, zit je er wel extreem buiten. Je moet maw zelf een overweging doen. Dwz dat de mean ook goed kan zijn. Het heeft een groter getrouwheidsinterval, maar de outliers zijn minder extreem.
De punten op de grafiek zij gemiddelden, dus je kan ze niet vinden in je dataset
Outliers zijn dus WEL relevant! .. ze bepalen de keuze, MAAR het gaat over gemiddelden
2008-11-11 14:31:09 [Ellen Smolders] [reply]
Onderstaande berekeningen zijn correct maar de student heeft deze cijfers onvolledig en vaag geinterpreteerd.

Voor deze vraag moeten we zelf een keuze maken en realiseren dat outliers zeer relevant zijn.

- Wanneer we ons baseren op de midrange, dan zal het betrouwbaarheidsinterval zeer groot (doordat de mediaan het minst fluctureert) zijn en de spreiding het kleinst. Maar bij de midrange zijn er meer grote outliers, wat een risico met zich meebrengt.
- We kunnen ons ook baseren op de man, dit betekent dat het betrouwbaarheidsinterval kleiner is en de spreiding groter. Maar deze heeft de minste outliers.

Post a new message

Dataset

Dataseries X:
Download CSV
Histogram
Boxplots
109.20
88.60
94.30
98.30
86.40
80.60
104.10
108.20
93.40
71.90
94.10
94.90
96.40
91.10
84.40
86.40
88.00
75.10
109.70
103.00
82.10
68.00
96.40
94.30
90.00
88.00
76.10
82.50
81.40
66.50
97.20
94.10
80.70
70.50
87.80
89.50
99.60
84.20
75.10
92.00
80.80
73.10
99.80
90.00
83.10
72.40
78.80
87.30
91.00
80.10
73.60
86.40
74.50
71.20
92.40
81.50
85.30
69.90
84.20
90.70
100.30

Tables (Output of Computation)





Summary of computational transaction
Raw Inputview raw input (R code)
Raw Outputview raw output of R engine
Computing time4 seconds
R Server'Gwilym Jenkins' @ 72.249.127.135

\begin{tabular}{lllllllll}
\hline
Summary of computational transaction \tabularnewline
Raw Input & view raw input (R code)  \tabularnewline
Raw Output & view raw output of R engine  \tabularnewline
Computing time & 4 seconds \tabularnewline
R Server & 'Gwilym Jenkins' @ 72.249.127.135 \tabularnewline
\hline
\end{tabular}
%Source: https://freestatistics.org/blog/index.php?pk=21077&T=0

[TABLE]
[ROW][C]Summary of computational transaction[/C][/ROW]
[ROW][C]Raw Input[/C][C]view raw input (R code) [/C][/ROW]
[ROW][C]Raw Output[/C][C]view raw output of R engine [/C][/ROW]
[ROW][C]Computing time[/C][C]4 seconds[/C][/ROW]
[ROW][C]R Server[/C][C]'Gwilym Jenkins' @ 72.249.127.135[/C][/ROW]
[/TABLE]
Source: https://freestatistics.org/blog/index.php?pk=21077&T=0

Globally Unique Identifier (entire table): ba.freestatistics.org/blog/index.php?pk=21077&T=0

As an alternative you can also use a QR Code:
QR Code


The GUIDs for individual cells are displayed in the table below:

Summary of computational transaction
Raw Inputview raw input (R code)
Raw Outputview raw output of R engine
Computing time4 seconds
R Server'Gwilym Jenkins' @ 72.249.127.135






Estimation Results of Blocked Bootstrap
statisticQ1EstimateQ3S.D.IQR
mean85.746311475409886.893442622950887.92540983606561.559962219809242.17909836065573
median86.487.3881.704987132574461.59999999999999
midrange88.188.188.850.8562057793973080.75

\begin{tabular}{lllllllll}
\hline
Estimation Results of Blocked Bootstrap \tabularnewline
statistic & Q1 & Estimate & Q3 & S.D. & IQR \tabularnewline
mean & 85.7463114754098 & 86.8934426229508 & 87.9254098360656 & 1.55996221980924 & 2.17909836065573 \tabularnewline
median & 86.4 & 87.3 & 88 & 1.70498713257446 & 1.59999999999999 \tabularnewline
midrange & 88.1 & 88.1 & 88.85 & 0.856205779397308 & 0.75 \tabularnewline
\hline
\end{tabular}
%Source: https://freestatistics.org/blog/index.php?pk=21077&T=1

[TABLE]
[ROW][C]Estimation Results of Blocked Bootstrap[/C][/ROW]
[ROW][C]statistic[/C][C]Q1[/C][C]Estimate[/C][C]Q3[/C][C]S.D.[/C][C]IQR[/C][/ROW]
[ROW][C]mean[/C][C]85.7463114754098[/C][C]86.8934426229508[/C][C]87.9254098360656[/C][C]1.55996221980924[/C][C]2.17909836065573[/C][/ROW]
[ROW][C]median[/C][C]86.4[/C][C]87.3[/C][C]88[/C][C]1.70498713257446[/C][C]1.59999999999999[/C][/ROW]
[ROW][C]midrange[/C][C]88.1[/C][C]88.1[/C][C]88.85[/C][C]0.856205779397308[/C][C]0.75[/C][/ROW]
[/TABLE]
Source: https://freestatistics.org/blog/index.php?pk=21077&T=1

Globally Unique Identifier (entire table): ba.freestatistics.org/blog/index.php?pk=21077&T=1

As an alternative you can also use a QR Code:
QR Code


The GUIDs for individual cells are displayed in the table below:

Estimation Results of Blocked Bootstrap
statisticQ1EstimateQ3S.D.IQR
mean85.746311475409886.893442622950887.92540983606561.559962219809242.17909836065573
median86.487.3881.704987132574461.59999999999999
midrange88.188.188.850.8562057793973080.75


Figures (Output of Computation)

Input Parameters & R Code

Parameters (Session):
par1 = 500 ; par2 = 12 ;
Parameters (R input):
par1 = 500 ; par2 = 12 ;
R code (references can be found in the software module):
par1 <- as.numeric(par1)
par2 <- as.numeric(par2)
if (par1 < 10) par1 = 10
if (par1 > 5000) par1 = 5000
if (par2 < 3) par2 = 3
if (par2 > length(x)) par2 = length(x)
library(lattice)
library(boot)
boot.stat <- function(s)
{
s.mean <- mean(s)
s.median <- median(s)
s.midrange <- (max(s) + min(s)) / 2
c(s.mean, s.median, s.midrange)
}
(r <- tsboot(x, boot.stat, R=par1, l=12, sim='fixed'))
bitmap(file='plot1.png')
plot(r$t[,1],type='p',ylab='simulated values',main='Simulation of Mean')
grid()
dev.off()
bitmap(file='plot2.png')
plot(r$t[,2],type='p',ylab='simulated values',main='Simulation of Median')
grid()
dev.off()
bitmap(file='plot3.png')
plot(r$t[,3],type='p',ylab='simulated values',main='Simulation of Midrange')
grid()
dev.off()
bitmap(file='plot4.png')
densityplot(~r$t[,1],col='black',main='Density Plot',xlab='mean')
dev.off()
bitmap(file='plot5.png')
densityplot(~r$t[,2],col='black',main='Density Plot',xlab='median')
dev.off()
bitmap(file='plot6.png')
densityplot(~r$t[,3],col='black',main='Density Plot',xlab='midrange')
dev.off()
z <- data.frame(cbind(r$t[,1],r$t[,2],r$t[,3]))
colnames(z) <- list('mean','median','midrange')
bitmap(file='plot7.png')
boxplot(z,notch=TRUE,ylab='simulated values',main='Bootstrap Simulation - Central Tendency')
grid()
dev.off()
load(file='createtable')
a<-table.start()
a<-table.row.start(a)
a<-table.element(a,'Estimation Results of Blocked Bootstrap',6,TRUE)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'statistic',header=TRUE)
a<-table.element(a,'Q1',header=TRUE)
a<-table.element(a,'Estimate',header=TRUE)
a<-table.element(a,'Q3',header=TRUE)
a<-table.element(a,'S.D.',header=TRUE)
a<-table.element(a,'IQR',header=TRUE)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'mean',header=TRUE)
q1 <- quantile(r$t[,1],0.25)[[1]]
q3 <- quantile(r$t[,1],0.75)[[1]]
a<-table.element(a,q1)
a<-table.element(a,r$t0[1])
a<-table.element(a,q3)
a<-table.element(a,sqrt(var(r$t[,1])))
a<-table.element(a,q3-q1)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'median',header=TRUE)
q1 <- quantile(r$t[,2],0.25)[[1]]
q3 <- quantile(r$t[,2],0.75)[[1]]
a<-table.element(a,q1)
a<-table.element(a,r$t0[2])
a<-table.element(a,q3)
a<-table.element(a,sqrt(var(r$t[,2])))
a<-table.element(a,q3-q1)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'midrange',header=TRUE)
q1 <- quantile(r$t[,3],0.25)[[1]]
q3 <- quantile(r$t[,3],0.75)[[1]]
a<-table.element(a,q1)
a<-table.element(a,r$t0[3])
a<-table.element(a,q3)
a<-table.element(a,sqrt(var(r$t[,3])))
a<-table.element(a,q3-q1)
a<-table.row.end(a)
a<-table.end(a)
table.save(a,file='mytable.tab')
