ungroup: estimating smooth distributions from coarsely binned data
ungroup: estimating smooth distributions from coarsely binned data
ungroup recovers a smooth, detailed distribution from
counts that were published in wide bins. It implements the penalized
composite link model (PCLM), which treats the coarse counts as indirect
observations of a smooth underlying sequence and estimates that sequence
by penalized maximum likelihood. It also extends the same idea to two
dimensions, so a sequence of coarsely grouped distributions can be
ungrouped and smoothed across time at once.
The problem it solves shows up wherever data arrive pre-aggregated. Hospitals publish deaths in five-year age groups. Registries report cases by ten-year cohort. Vital statistics close the oldest age group at 85+, sometimes at 90+, with a single wide interval holding a large share of the total. In every case the fine-grained distribution you need is inside the bins you were given, and taking the bins at face value is not good enough for the questions people actually ask of the data.

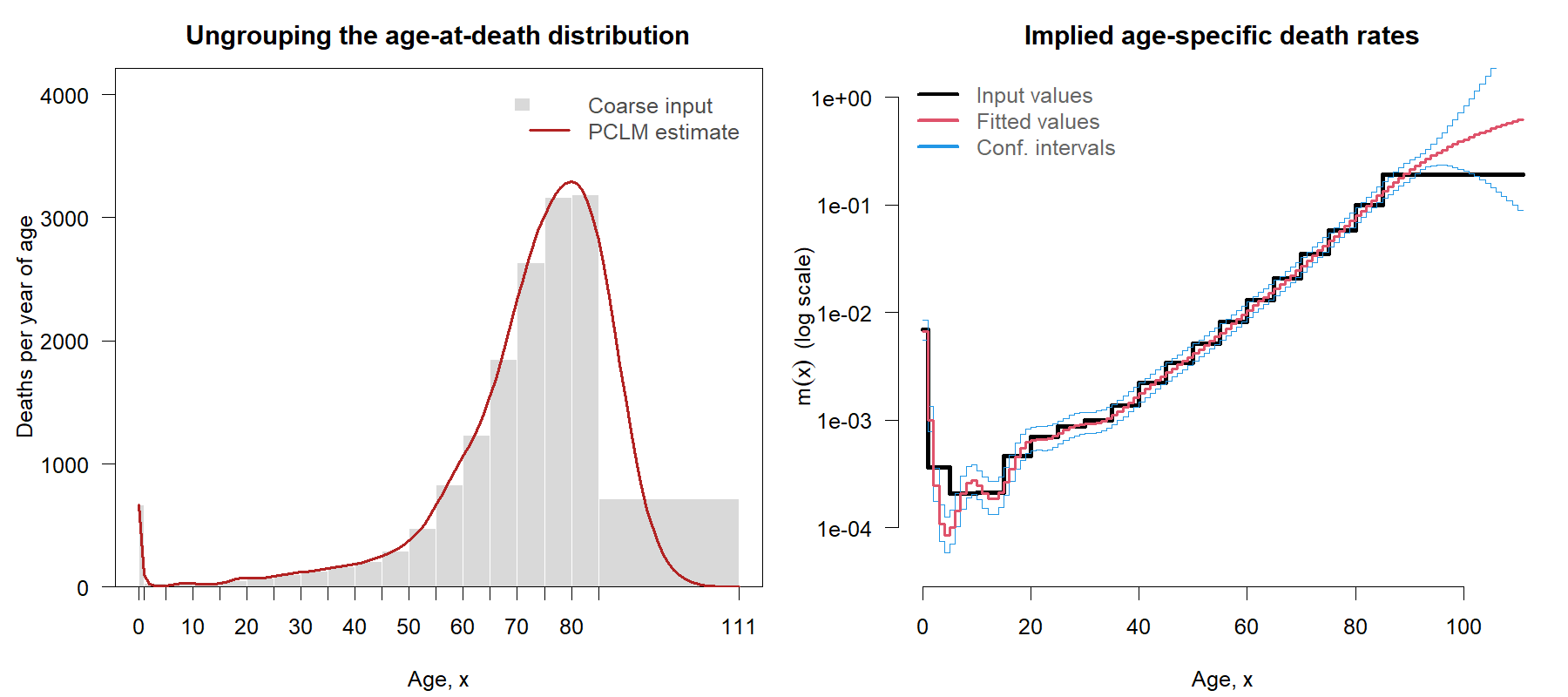

The naive alternative, spreading each bin’s count evenly over its width, imposes a flat step on every interval. It is not merely inelegant, it is biased: in the Swedish data shipped with the package, that approach overstates life expectancy at birth by an average of 2.5 years. PCLM recovers the same distribution to within a tenth of a year, and it redistributes exactly the deaths it was given.
| capability | how |
|---|---|
| Ungroup counts onto a finer grid | pclm(), with any output width from 0.1 to 1 |
| Ungroup a surface over time | pclm2D(), for a matrix of years by age |
| Estimate rates instead of counts | pass an offset of exposures |
| State where the distribution closes | omega instead of the width of the last interval |
| Smooth over unobserved cells | na.action = "omit" |
| Quantify uncertainty | pointwise intervals, and mass-preserving scenarios for life tables |
install.packages("ungroup")The development version comes from GitHub. pak is the
recommended installer, and it needs a working development environment:
Rtools on Windows, Xcode on macOS, a compiler on Linux.
# install.packages("pak")
pak::pak("mpascariu/ungroup")pak::pak() also installs the compiled dependencies this
package links against, so it is the simplest route on a fresh
machine.
The tutorial is the place to start, and it works through the model, the smoothing parameter, missing data and how to read every part of the output:
vignette("Intro", package = "ungroup")The JOSS paper gives a short overview of the method and its motivation: Pascariu et al. (2018), Journal of Open Source Software, 3(29), 937, https://doi.org/10.21105/joss.00937.
The estimator is the penalized composite link model of Eilers (2007), built on the composite link model of Thompson and Baker (1981). The one-dimensional case follows Rizzi, Gampe and Eilers (2015); the two-dimensional extension with smoothing across adjacent years follows Rizzi et al. (2019). Smoothing parameters are chosen by BIC or AIC.
citation("ungroup")Pascariu, M. D., Dańko, M. J., Schöley, J., and Rizzi, S. (2018). ungroup: An R package for efficient estimation of smooth distributions from coarsely binned data. Journal of Open Source Software, 3(29), 937. https://doi.org/10.21105/joss.00937
Issues and pull requests are welcome. If ungroup
misbehaves, please open an issue with a minimal reproducible example.
See CONTRIBUTING.md.
This project is released with a Contributor
Code of Conduct.
Eilers, P. H. C. (2007). Ill-posed problems with counts, the composite link model and penalized likelihood. Statistical Modelling, 7(3), 239-254. https://doi.org/10.1177/1471082X0700700302
Rizzi, S., Gampe, J., and Eilers, P. H. C. (2015). Efficient estimation of smooth distributions from coarsely grouped data. American Journal of Epidemiology, 182(2), 138-147. https://doi.org/10.1093/aje/kwv020
Rizzi, S., Halekoh, U., Thinggaard, M., Engholm, G., Christensen, N., Johannesen, T. B., and Lindahl-Jacobsen, R. (2019). How to estimate mortality trends from grouped vital statistics. International Journal of Epidemiology, 48(2), 571-582. https://doi.org/10.1093/ije/dyy183
Thompson, R. and Baker, R. J. (1981). Composite link functions in generalized linear models. Applied Statistics, 30(2), 125-131.
