rEDM

Overview

rEDM is a collection of methods for Empirical Dynamic Modeling (EDM). EDM is based on the mathematical theory of reconstructing attractor manifolds from time series data with applications to forecasting, causal inference, and more. It is based on research software developed at the Sugihara Lab (University of California San Diego, Scripps Institution of Oceanography).

Empirical Dynamic Modeling (EDM)

Introduction and documentation are are avilable online, or in the package tutorial.

Functionality includes:

• Simplex projection (Sugihara and May 1990)
• Sequential Locally Weighted Global Linear Maps (S-map) (Sugihara 1994)
• Multivariate embeddings (Deyle and Sugihara 2011)
• Convergent cross mapping (Sugihara et. al. 2012)
• Multiview embedding (Ye and Sugihara 2016)

Installation

To install from CRAN rEDM:

install.packages(rEDM)

Using R devtools for latest development version:

install.packages("devtools")
devtools::install_github("SugiharaLab/rEDM")

Building from source:

git clone https://github.com/SugiharaLab/rEDM.git
cd rEDM
R CMD INSTALL .

Example

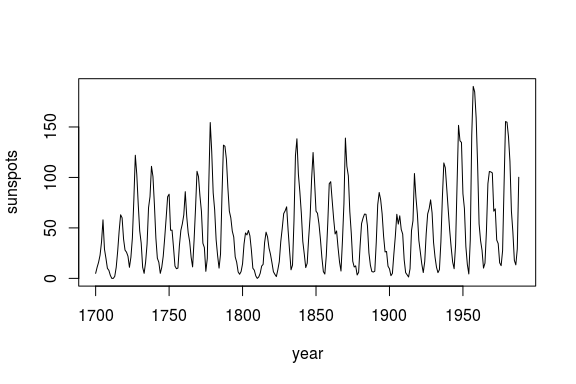

We begin by looking at annual time series of sunspots:

df = data.frame(yr = as.numeric(time(sunspot.year)),
                 sunspot_count = as.numeric(sunspot.year))

plot(df$yr, df$sunspot_count, type = "l",
     xlab = "year", ylab = "sunspots")

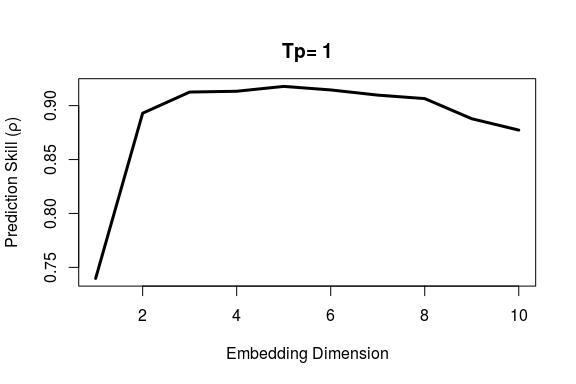

First, we use EmbedDimension() to determine the optimal embedding dimension, E:

library(rEDM)   # load the package
# If you're new to the rEDM package, please consult the tutorial:
# vignette("rEDM-tutorial")

E.opt = EmbedDimension( dataFrame = df,    # input data
                        lib     = "1 280", # portion of data to train
                        pred    = "1 280", # portion of data to predict
                        columns = "sunspot_count",
                        target  = "sunspot_count" )

E.opt
#     E    rho
# 1   1 0.7413
# 2   2 0.8954
# 3   3 0.9156
# 4   4 0.9169
# 5   5 0.9207
# 6   6 0.9167
# 7   7 0.9109
# 8   8 0.9078
# 9   9 0.8890
# 10 10 0.8787

E = 3 represents convergence of predictive skill as a function of E and we use E = 3 to forecast the last 1/3 of data based on training (attractor reconstruction) from the first 2/3.

simplex = Simplex( dataFrame = df,
                   lib     = "1   190", # portion of data to train
                   pred    = "191 289", # portion of data to predict
                   columns = "sunspot_count",
                   target  = "sunspot_count",
                   E       = 3 )

plot( df$yr, df$sunspot_count, type = "l", lwd = 2,
      xlab = "year", ylab = "sunspots")
lines( simplex$yr, simplex$Predictions, col = "red", lwd = 2)
legend( 'topleft', legend = c( "Observed", "Predicted (year + 1)" ),
        fill = c( 'black', 'red' ), bty = 'n', cex = 1.3 )

Further Examples

Please see the package vignettes for more details:

browseVignettes("rEDM")

References

Sugihara G. and May R. 1990. Nonlinear forecasting as a way of distinguishing chaos from measurement error in time series. Nature, 344:734–741.

Sugihara G. 1994. Nonlinear forecasting for the classification of natural time series. Philosophical Transactions: Physical Sciences and Engineering, 348 (1688) : 477–495.

Deyle E. R. and Sugihara G. 2011. Generalized theorems for nonlinear state space reconstruction, PLoS One, 6(3) : e18295.

Sugihara G., May R., Ye H., Hsieh C., Deyle E., Fogarty M., Munch S., 2012. Detecting Causality in Complex Ecosystems. Science 338:496-500.

Ye H., and G. Sugihara, 2016. Information leverage in interconnected ecosystems: Overcoming the curse of dimensionality. Science 353:922–925.
