Description of Statistical Computation

Author's title

Author*Unverified author*
R Software Modulerwasp_density.wasp
Title produced by softwareKernel Density Estimation
Date of computationFri, 15 Feb 2013 09:08:59 -0500
Cite this page as followsStatistical Computations at FreeStatistics.org, Office for Research Development and Education, URL https://freestatistics.org/blog/index.php?v=date/2013/Feb/15/t136093736364hzxfduiiyly7p.htm/, Retrieved Sun, 05 May 2024 18:23:33 +0000
Statistical Computations at FreeStatistics.org, Office for Research Development and Education, URL https://freestatistics.org/blog/index.php?pk=206529, Retrieved Sun, 05 May 2024 18:23:33 +0000
QR Codes:

Original text written by user:
IsPrivate?No (this computation is public)
User-defined keywords
Estimated Impact144

Tree of Dependent Computations

Family? (F = Feedback message, R = changed R code, M = changed R Module, P = changed Parameters, D = changed Data)
-     [Univariate Data Series] [] [2013-02-07 14:56:09] [d4a85ce79591540d19cb77e755555abe]
- RMPD    [Kernel Density Estimation] [prijsindex Graan] [2013-02-15 14:08:59] [7bdaea507391e586c2f546987cf73038] [Current]
Feedback Forum

Post a new message

Dataset

Dataseries X:
Download CSV
Histogram
Boxplots
55.7
59.2
59.8
61.6
65.8
64.2
67
62.8
65.5
75.2
80.9
83.2
83.7
86.4
85.9
80.4
81.8
87.5
83.7
87
99.7
101.4
101.9
115.7
123.2
136.9
146.8
149.6
146.5
157
147.9
133.6
128.7
100.8
91.8
89.3
96.7
91.6
93.3
93.3
101
100.4
86.9
83.9
80.3
87.7
92.7
95.5
92
87.4
86.8
83.7
85
81.7
90.9
101.5
113.8
120.1
122.1
132.5
140
149.4
144.3
154.4
151.4
145.5
136.8
146.6
145.1
133.6
131.4
127.5
130.1
131.1
132.3
128.6
125.1
128.7
156.1
163.2
159.8
157.4
156.2
149.4

Tables (Output of Computation)





Summary of computational transaction
Raw Inputview raw input (R code)
Raw Outputview raw output of R engine
Computing time6 seconds
R Server'George Udny Yule' @ yule.wessa.net

\begin{tabular}{lllllllll}
\hline
Summary of computational transaction \tabularnewline
Raw Input & view raw input (R code)  \tabularnewline
Raw Output & view raw output of R engine  \tabularnewline
Computing time & 6 seconds \tabularnewline
R Server & 'George Udny Yule' @ yule.wessa.net \tabularnewline
\hline
\end{tabular}
%Source: https://freestatistics.org/blog/index.php?pk=206529&T=0

[TABLE]
[ROW][C]Summary of computational transaction[/C][/ROW]
[ROW][C]Raw Input[/C][C]view raw input (R code) [/C][/ROW]
[ROW][C]Raw Output[/C][C]view raw output of R engine [/C][/ROW]
[ROW][C]Computing time[/C][C]6 seconds[/C][/ROW]
[ROW][C]R Server[/C][C]'George Udny Yule' @ yule.wessa.net[/C][/ROW]
[/TABLE]
Source: https://freestatistics.org/blog/index.php?pk=206529&T=0

Globally Unique Identifier (entire table): ba.freestatistics.org/blog/index.php?pk=206529&T=0

As an alternative you can also use a QR Code:
QR Code


The GUIDs for individual cells are displayed in the table below:

Summary of computational transaction
Raw Inputview raw input (R code)
Raw Outputview raw output of R engine
Computing time6 seconds
R Server'George Udny Yule' @ yule.wessa.net






Properties of Density Trace
Bandwidth11.3113039294959
#Observations84

\begin{tabular}{lllllllll}
\hline
Properties of Density Trace \tabularnewline
Bandwidth & 11.3113039294959 \tabularnewline
#Observations & 84 \tabularnewline
\hline
\end{tabular}
%Source: https://freestatistics.org/blog/index.php?pk=206529&T=1

[TABLE]
[ROW][C]Properties of Density Trace[/C][/ROW]
[ROW][C]Bandwidth[/C][C]11.3113039294959[/C][/ROW]
[ROW][C]#Observations[/C][C]84[/C][/ROW]
[/TABLE]
Source: https://freestatistics.org/blog/index.php?pk=206529&T=1

Globally Unique Identifier (entire table): ba.freestatistics.org/blog/index.php?pk=206529&T=1

As an alternative you can also use a QR Code:
QR Code


The GUIDs for individual cells are displayed in the table below:

Properties of Density Trace
Bandwidth11.3113039294959
#Observations84






Maximum Density Values
Kernelx-valuemax. density
Gaussian88.34408776911160.0134036932584536
Epanechnikov86.28497438073220.0123455257259434
Rectangular82.85311873343330.0124566503941964
Triangular86.9713455101920.0130112923582715
Biweight87.65771663965180.0126637142754872
Cosine88.00090220438170.0127881145468872
Optcosine86.62815994546210.0124349731531706

\begin{tabular}{lllllllll}
\hline
Maximum Density Values \tabularnewline
Kernel & x-value & max. density \tabularnewline
Gaussian & 88.3440877691116 & 0.0134036932584536 \tabularnewline
Epanechnikov & 86.2849743807322 & 0.0123455257259434 \tabularnewline
Rectangular & 82.8531187334333 & 0.0124566503941964 \tabularnewline
Triangular & 86.971345510192 & 0.0130112923582715 \tabularnewline
Biweight & 87.6577166396518 & 0.0126637142754872 \tabularnewline
Cosine & 88.0009022043817 & 0.0127881145468872 \tabularnewline
Optcosine & 86.6281599454621 & 0.0124349731531706 \tabularnewline
\hline
\end{tabular}
%Source: https://freestatistics.org/blog/index.php?pk=206529&T=2

[TABLE]
[ROW][C]Maximum Density Values[/C][/ROW]
[ROW][C]Kernel[/C][C]x-value[/C][C]max. density[/C][/ROW]
[ROW][C]Gaussian[/C][C]88.3440877691116[/C][C]0.0134036932584536[/C][/ROW]
[ROW][C]Epanechnikov[/C][C]86.2849743807322[/C][C]0.0123455257259434[/C][/ROW]
[ROW][C]Rectangular[/C][C]82.8531187334333[/C][C]0.0124566503941964[/C][/ROW]
[ROW][C]Triangular[/C][C]86.971345510192[/C][C]0.0130112923582715[/C][/ROW]
[ROW][C]Biweight[/C][C]87.6577166396518[/C][C]0.0126637142754872[/C][/ROW]
[ROW][C]Cosine[/C][C]88.0009022043817[/C][C]0.0127881145468872[/C][/ROW]
[ROW][C]Optcosine[/C][C]86.6281599454621[/C][C]0.0124349731531706[/C][/ROW]
[/TABLE]
Source: https://freestatistics.org/blog/index.php?pk=206529&T=2

Globally Unique Identifier (entire table): ba.freestatistics.org/blog/index.php?pk=206529&T=2

As an alternative you can also use a QR Code:
QR Code


The GUIDs for individual cells are displayed in the table below:

Maximum Density Values
Kernelx-valuemax. density
Gaussian88.34408776911160.0134036932584536
Epanechnikov86.28497438073220.0123455257259434
Rectangular82.85311873343330.0124566503941964
Triangular86.9713455101920.0130112923582715
Biweight87.65771663965180.0126637142754872
Cosine88.00090220438170.0127881145468872
Optcosine86.62815994546210.0124349731531706


Figures (Output of Computation)

Input Parameters & R Code

Parameters (Session):
par1 = 0 ; par2 = no ; par3 = 512 ;
Parameters (R input):
par1 = 0 ; par2 = no ; par3 = 512 ;
R code (references can be found in the software module):
if (par1 == '0') bw <- 'nrd0'
if (par1 != '0') bw <- as.numeric(par1)
par3 <- as.numeric(par3)
mydensity <- array(NA, dim=c(par3,8))
bitmap(file='density1.png')

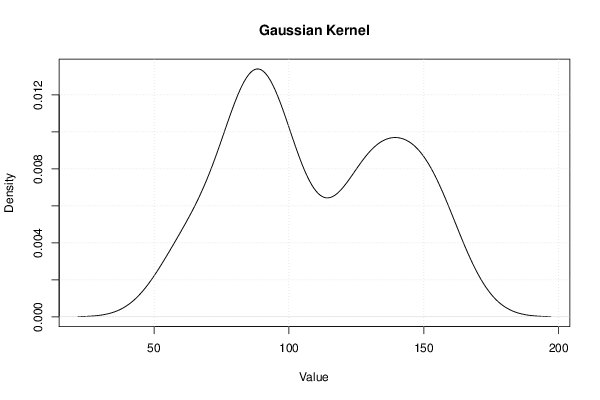

mydensity1<-density(x,bw=bw,kernel='gaussian',na.rm=TRUE)
mydensity[,8] = signif(mydensity1$x,3)
mydensity[,1] = signif(mydensity1$y,3)
plot(mydensity1,main='Gaussian Kernel',xlab=xlab,ylab=ylab)
grid()
dev.off()
mydensity1
bitmap(file='density2.png')

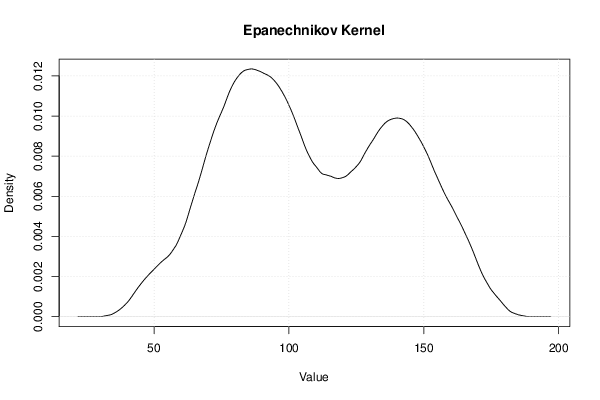

mydensity2<-density(x,bw=bw,kernel='epanechnikov',na.rm=TRUE)
mydensity[,2] = signif(mydensity2$y,3)
plot(mydensity2,main='Epanechnikov Kernel',xlab=xlab,ylab=ylab)
grid()
dev.off()
bitmap(file='density3.png')

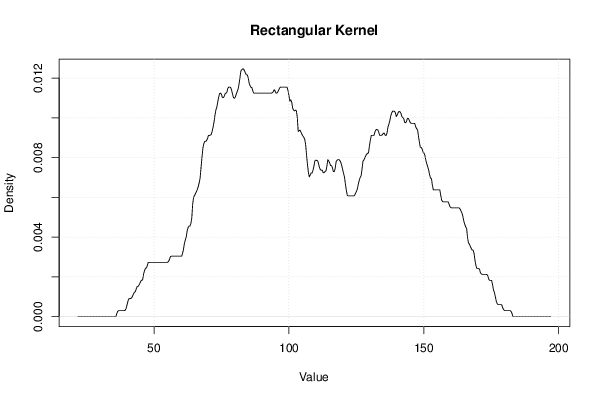

mydensity3<-density(x,bw=bw,kernel='rectangular',na.rm=TRUE)
mydensity[,3] = signif(mydensity3$y,3)
plot(mydensity3,main='Rectangular Kernel',xlab=xlab,ylab=ylab)
grid()
dev.off()
bitmap(file='density4.png')

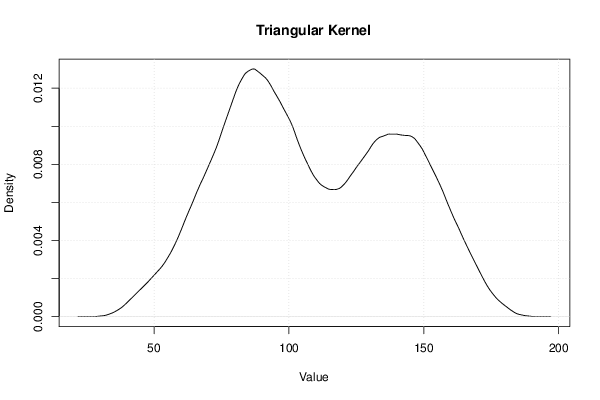

mydensity4<-density(x,bw=bw,kernel='triangular',na.rm=TRUE)
mydensity[,4] = signif(mydensity4$y,3)
plot(mydensity4,main='Triangular Kernel',xlab=xlab,ylab=ylab)
grid()
dev.off()
bitmap(file='density5.png')
mydensity5<-density(x,bw=bw,kernel='biweight',na.rm=TRUE)
mydensity[,5] = signif(mydensity5$y,3)
plot(mydensity5,main='Biweight Kernel',xlab=xlab,ylab=ylab)
grid()
dev.off()
bitmap(file='density6.png')

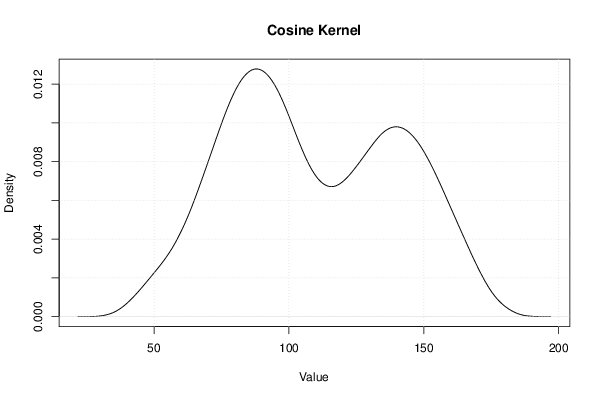

mydensity6<-density(x,bw=bw,kernel='cosine',na.rm=TRUE)
mydensity[,6] = signif(mydensity6$y,3)
plot(mydensity6,main='Cosine Kernel',xlab=xlab,ylab=ylab)
grid()
dev.off()
bitmap(file='density7.png')

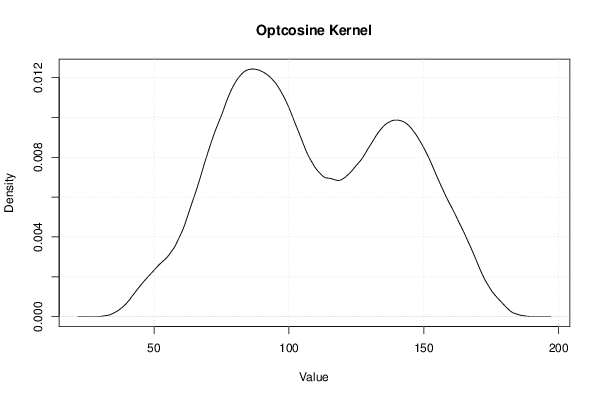

mydensity7<-density(x,bw=bw,kernel='optcosine',na.rm=TRUE)
mydensity[,7] = signif(mydensity7$y,3)
plot(mydensity7,main='Optcosine Kernel',xlab=xlab,ylab=ylab)
grid()
dev.off()
load(file='createtable')
a<-table.start()
a<-table.row.start(a)
a<-table.element(a,'Properties of Density Trace',2,TRUE)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'Bandwidth',header=TRUE)
a<-table.element(a,mydensity1$bw)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'#Observations',header=TRUE)
a<-table.element(a,mydensity1$n)
a<-table.row.end(a)
a<-table.end(a)
table.save(a,file='mytable.tab')
a<-table.start()
a<-table.row.start(a)
a<-table.element(a,'Maximum Density Values',3,TRUE)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'Kernel',1,TRUE)
a<-table.element(a,'x-value',1,TRUE)
a<-table.element(a,'max. density',1,TRUE)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'Gaussian',1,TRUE)
a<-table.element(a,mydensity1$x[mydensity1$y==max(mydensity1$y)],1)
a<-table.element(a,mydensity1$y[mydensity1$y==max(mydensity1$y)],1)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'Epanechnikov',1,TRUE)
a<-table.element(a,mydensity2$x[mydensity2$y==max(mydensity2$y)],1)
a<-table.element(a,mydensity2$y[mydensity2$y==max(mydensity2$y)],1)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'Rectangular',1,TRUE)
a<-table.element(a,mydensity3$x[mydensity3$y==max(mydensity3$y)],1)
a<-table.element(a,mydensity3$y[mydensity3$y==max(mydensity3$y)],1)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'Triangular',1,TRUE)
a<-table.element(a,mydensity4$x[mydensity4$y==max(mydensity4$y)],1)
a<-table.element(a,mydensity4$y[mydensity4$y==max(mydensity4$y)],1)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'Biweight',1,TRUE)
a<-table.element(a,mydensity5$x[mydensity5$y==max(mydensity5$y)],1)
a<-table.element(a,mydensity5$y[mydensity5$y==max(mydensity5$y)],1)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'Cosine',1,TRUE)
a<-table.element(a,mydensity6$x[mydensity6$y==max(mydensity6$y)],1)
a<-table.element(a,mydensity6$y[mydensity6$y==max(mydensity6$y)],1)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'Optcosine',1,TRUE)
a<-table.element(a,mydensity7$x[mydensity7$y==max(mydensity7$y)],1)
a<-table.element(a,mydensity7$y[mydensity7$y==max(mydensity7$y)],1)
a<-table.row.end(a)
a<-table.end(a)
table.save(a,file='mytable2.tab')
if (par2=='yes') {
a<-table.start()
a<-table.row.start(a)
a<-table.element(a,'Kernel Density Values',8,TRUE)
a<-table.row.end(a)
a<-table.row.start(a)
a<-table.element(a,'x-value',1,TRUE)
a<-table.element(a,'Gaussian',1,TRUE)
a<-table.element(a,'Epanechnikov',1,TRUE)
a<-table.element(a,'Rectangular',1,TRUE)
a<-table.element(a,'Triangular',1,TRUE)
a<-table.element(a,'Biweight',1,TRUE)
a<-table.element(a,'Cosine',1,TRUE)
a<-table.element(a,'Optcosine',1,TRUE)
a<-table.row.end(a)
for(i in 1:par3) {
a<-table.row.start(a)
a<-table.element(a,mydensity[i,8],1,TRUE)
for(j in 1:7) {
a<-table.element(a,mydensity[i,j],1)
}
a<-table.row.end(a)
}
a<-table.end(a)
table.save(a,file='mytable1.tab')
}
